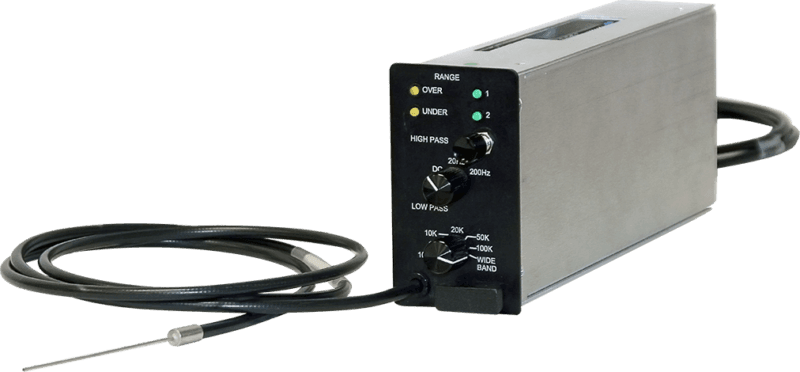

MTI Instruments光纖傳感器Fotonic插件模塊

發布時間：2020-12-28 16:06:25 瀏覽：1101

MTI Instruments光纖傳感器的Fotonic插件模塊用于測量頻率高達500 kHz的動態邊緣位置、位移和振動，Fotonic插件模塊用于靈敏的光纖納米運動和振動測量傳感器。

動態邊緣位置、位移和振動測量頻率可達500 kHz。MTI Instruments獨特的光纖探針設計能夠適應各種目標反射率或形狀，非常適合于各種應用，如超聲波喇叭振動或壓電材料的研究。

隨機光纖分布--隨著從探針到目標的距離增大，接收到的光纖按比例捕獲更多的光。結果是一個非常敏感的線性輸出響應。探針間隙的不斷增大將按比例減少接收到的光量，從而產生敏感的線性輸出響應，并且具有很大的測量范圍和隔離距離。


應用領域

盒式運動

核換熱器振動

壓電陶瓷，1-3 PZT/聚合物復合材料和PVDF薄膜

壓電疊加運動

MTI Instruments是美國精密測試儀器的制造商。其產品需要精確的測量和控制，以及自動化制造、裝配和復雜機械操作的開發和實施。MTI Instruments主要用于商用和軍用飛機發動機振動定位測試、半導體晶片測試等領域。

深圳市立維創展科技有限公司，優勢直接渠道提供MTI Instrument s訂貨服務，歡迎咨詢。

詳情了解MTI Instrument s請點擊：/brand/70.html

或聯系我們的銷售工程師：0755-83050846 QQ: 3312069749

P/N	Model	Measurement Range	Stand-Off	Resolution	Frequency Response
8500-1011	Plug-in Module: MTI-2020R	0.102mm (4mils) – 0.305mm (12mils)	0.127mm (5mils) – 0.508mm (20mils)	0.01μm (1μin) – 0.1μm (1μin)	120kHz
8500-1012	Plug-in Module: MTI-2032R	0.127mm (5mils) – 1.016mm (40mils)	0.127mm (5mils) – 0.889mm (35mils)	0.01μm (1μin) – 0.1μm (1μin)	120kHz
8500-1013	Plug-in Module: MTI-2047R	0.127mm (5mils) – 1.016mm (40mils)	0.127mm (5mils) – 1.118mm (44mils)	0.01μm (1μin) – 0.1μm (1μin)	130kHz
8500-1014	Plug-in Module: MTI-2062R	0.152mm (6mils) – 1.524mm (60mils)	0.127mm (5mils) – 1.778mm (70mils)	0.01μm (1μin) – 0.1μm (1μin)	150kHz
8500-1015	Plug-in Module: MTI-2062H	0.762mm (30mils) – 1.905mm (75mils)	0.762mm (30mils) – 3.81mm (150mils)	0.01μm (1μin) – 0.1μm (1μin)	150kHz
8500-1016	Plug-in Module: MTI-2125R	0.152mm (6mils) – 3.556mm (140mils)	0.178mm (7mils) – 3.048mm (120mils)	0.01μm (1μin) – 0.1μm (1μin)	190kHz
8500-1017	Plug-in Module: MTI-2125H	1.778mm (70mils) – 4.445mm (175mils)	1.27mm (50mils) – 7.62mm (300mils)	0.01μm (1μin) – 0.1μm (1μin)	150kHz
8500-1018	Plug-in Module: MTI-2125CTI	0.508mm (20mils) – 3.556mm (140mils)	0.762mm (30mils) – 5.588mm (220mils)	0.01μm (1μin) – 0.1μm (1μin)	150kHz
8500-1019	Plug-in Module: MTI-2032RX High Resolution	0.036mm (1.4mils) – 4.445mm (175mils)	0.038mm (1.5mils)	0.01μm (1μin) – 0.1μm (1μin)	100kHz
8000-4237	Plug-in Module: MTI-RC200	2.54mm (100mils)	2.54mm (100mils)	0.01μm (1μin) – 0.1μm (1μin)	100kHz
8500-1020	Plug-in Module: MTI-2047E	0.127mm (5mils) – 0.051mm (2mils)			100kHz
8500-1021	Plug-in Module: MTI-2062E	0.191mm (7.5mils) – 0.061mm (2.4mils)			100kHz
